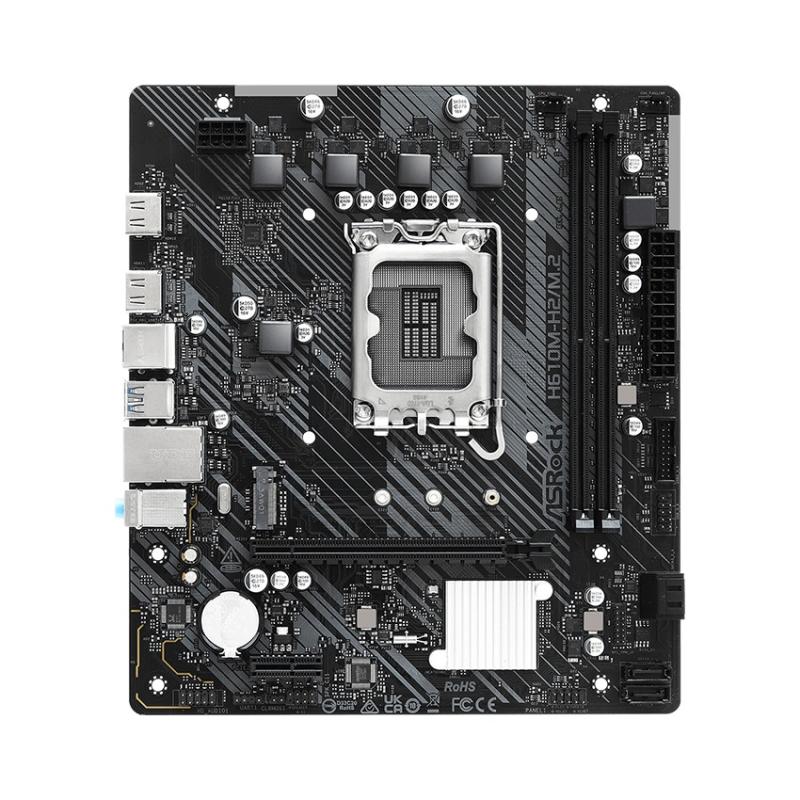

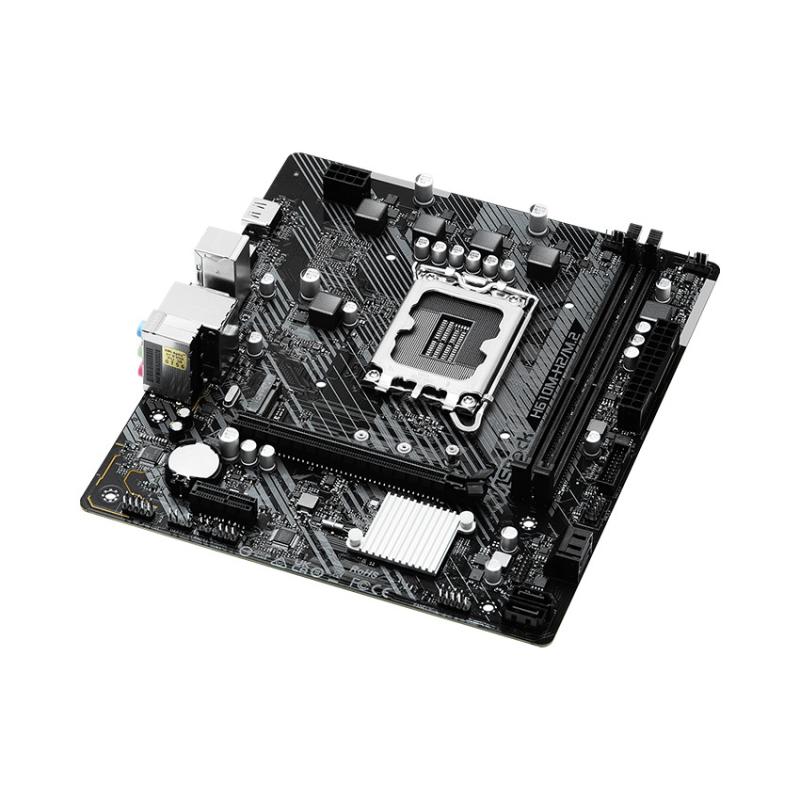

Mainboard ASROCK H610M – H2/M.2 (Chipset Intel H610, Socket LGA1700, DDR4 64GB, Micro ATX)

ASRock

36 tháng

Intel H610

LGA1700

– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology

2 khe

192GB

3200MHz

Khe PCIe 4.0 x16 cho card đồ họa và PCIe 3.0 x1 cho các thiết bị mở rộng khác.
Khe Ultra M.2 hỗ trợ SSD NVMe tốc độ lên đến 32Gb/s.

Micro ATX

10/100/1000 Mb/s

– 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
– 6 x USB 2.0 (4 Rear, 2 Front)
– 1 x PS/2 Mouse/Keyboard Port
– 2 x HDMI Ports
– 2 x USB 3.2 Gen1 Type-A Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header

– 1 x Ổ cắm Ultra M.2 (M2_1, Key M), hỗ trợ loại 2242/2260/2280 Chế độ PCIe Gen3x4 (32 Gb / s) *
– 4 x SATA3 6.0 Gb / s Đầu nối

– 1 x SPI TPM Header
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

– 128Mb AMI UEFI Legal BIOS với hỗ trợ GUI

22.0×19.3 cm

Đen
