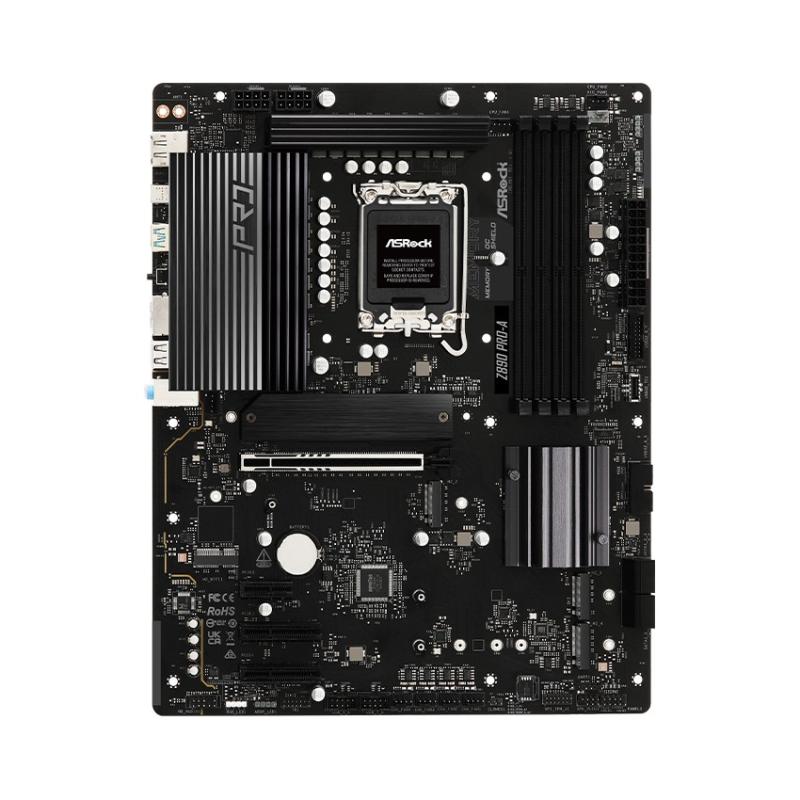

Mainboard ASROCK Z890 Pro A (Chipset Intel® Z890, Socket LGA 1851, DDR5 256GB, ATX)

ASRock

36 tháng

LGA 1851

Intel® Z890

8666MHz+(OC)

4 khe

CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

256GB

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors

ATX

– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
– 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

CPU:
– 1 x Thunderbolt™ 4 Type-C (Rear)
– 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)

– 2 x Antenna Mounting Points

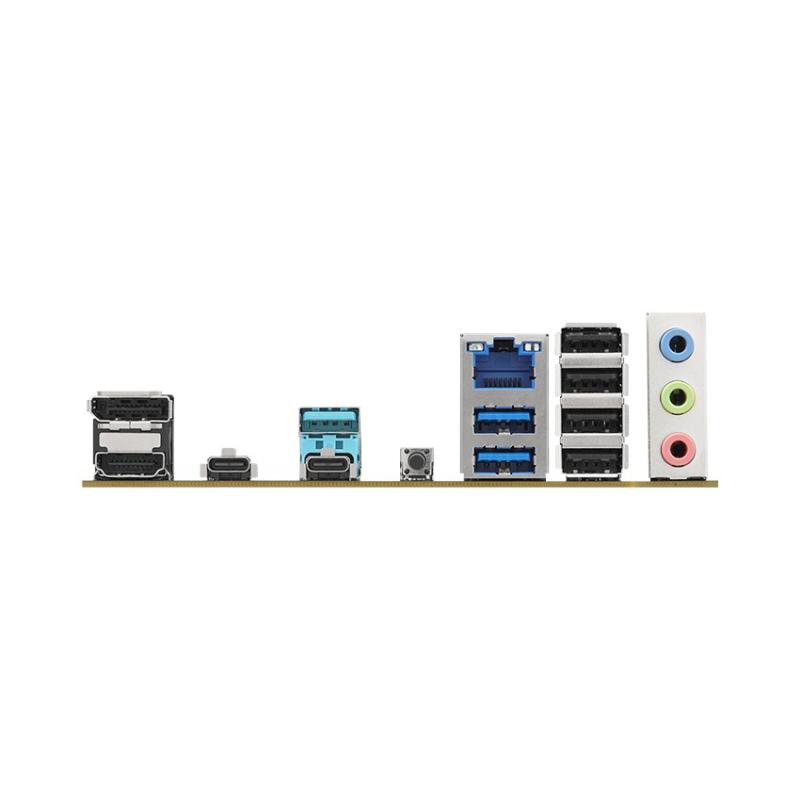

– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
