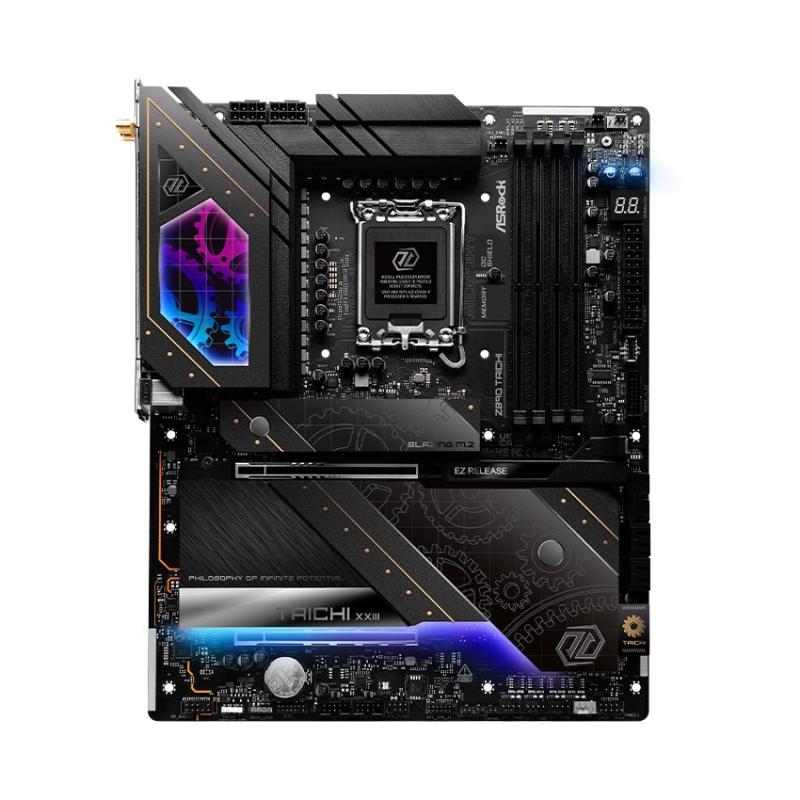

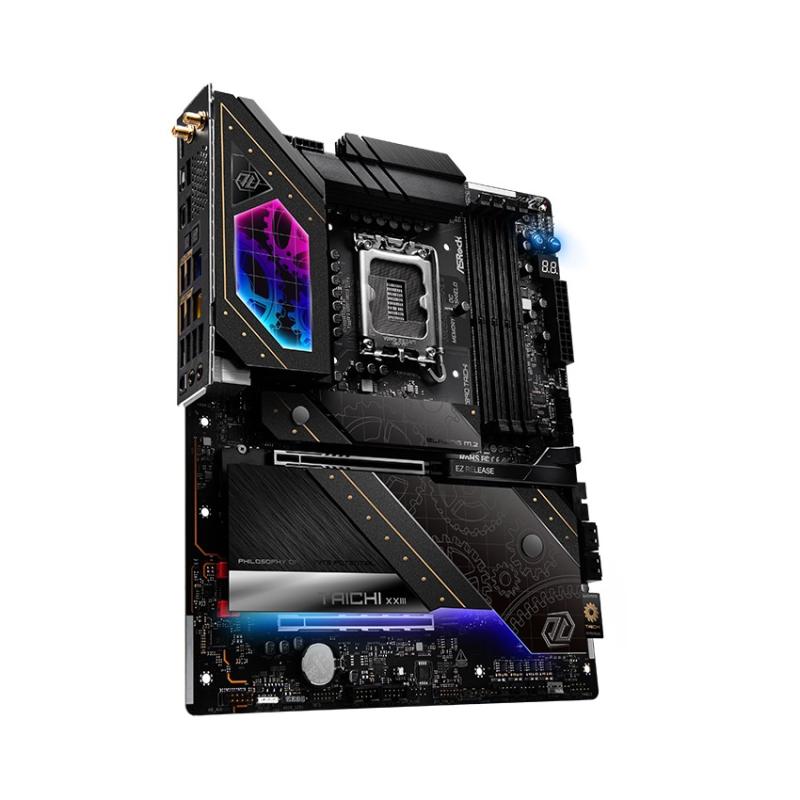

Mainboard ASROCK Z890 Taichi (Chipset Intel® Z890, Socket LGA 1851, DDR5 256GB, ATX)

ASRock

36 tháng

LGA 1851

Intel® Z890

9200MHz+(OC)

4 khe

CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

256GB

Wi-Fi 7
Bluetooth 5.4

CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

ATX

– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

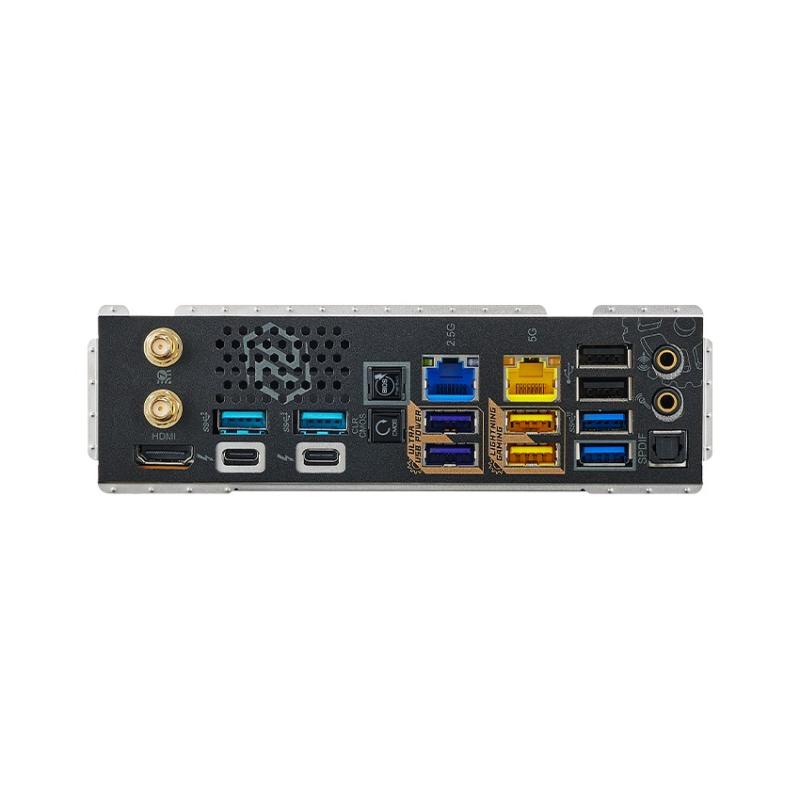

CPU:
– 2 x Thunderbolt™ 4 Type-C (Rear)
Chipset:
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 4 x USB 3.2 Gen2 Type-A (Rear)
– 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)

– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
– 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
– 4 x USB 3.2 Gen1 Ports**
– 2 x USB 2.0 Ports
– 2 x RJ-45 LAN Ports
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
