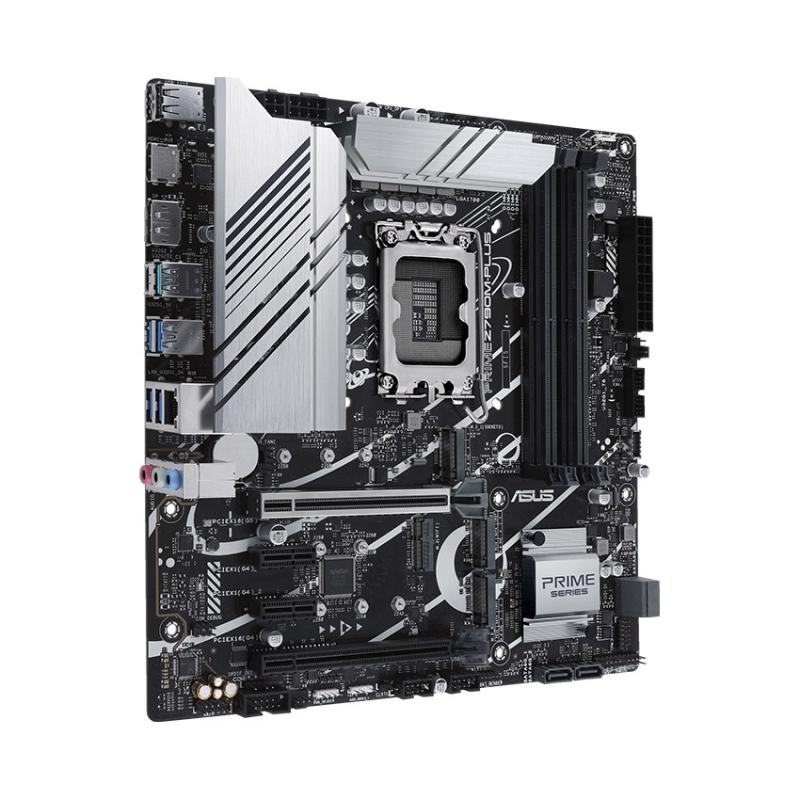

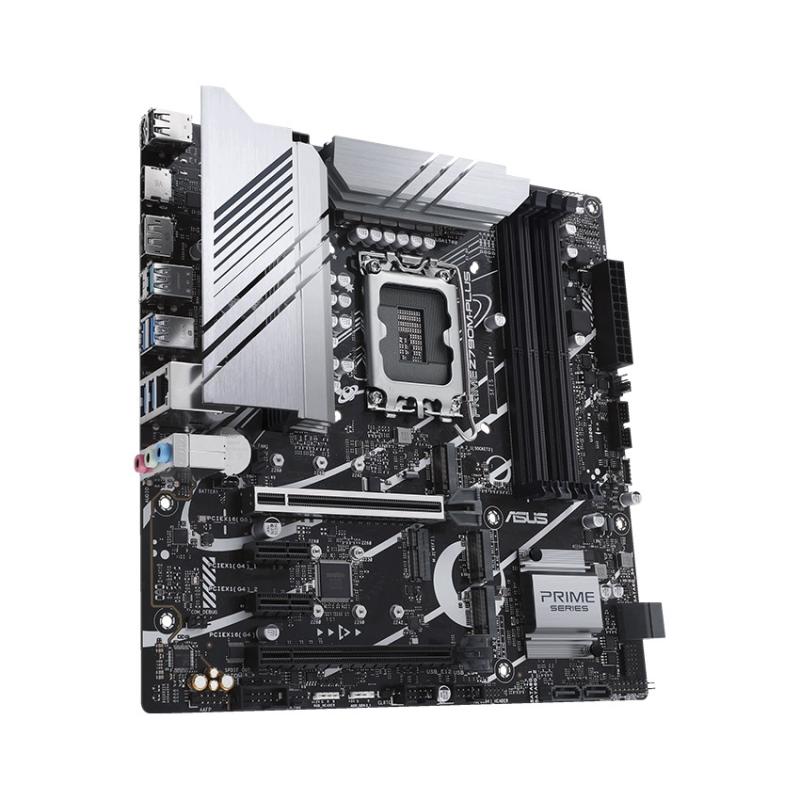

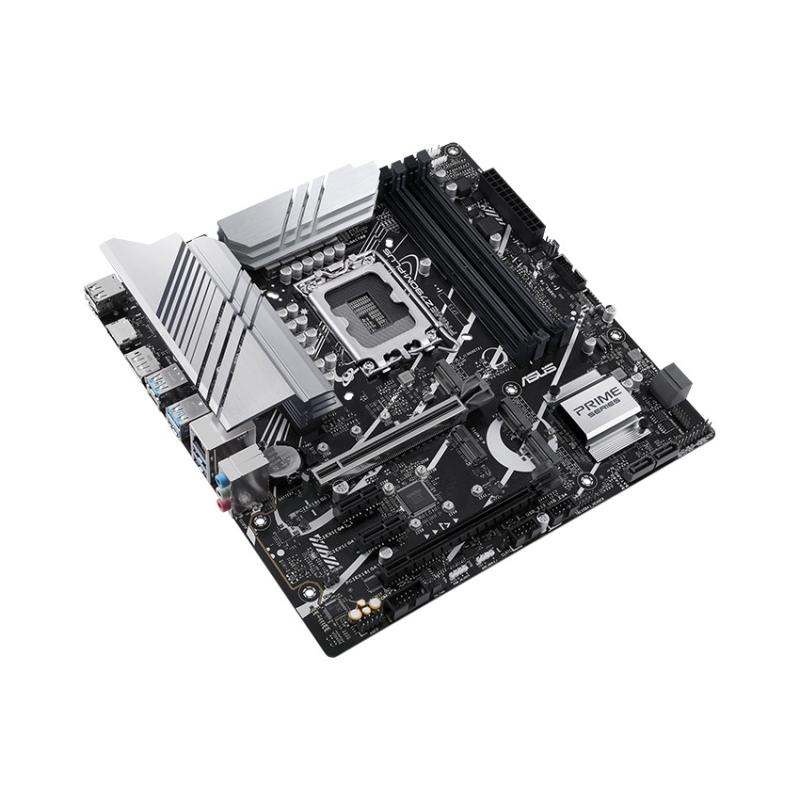

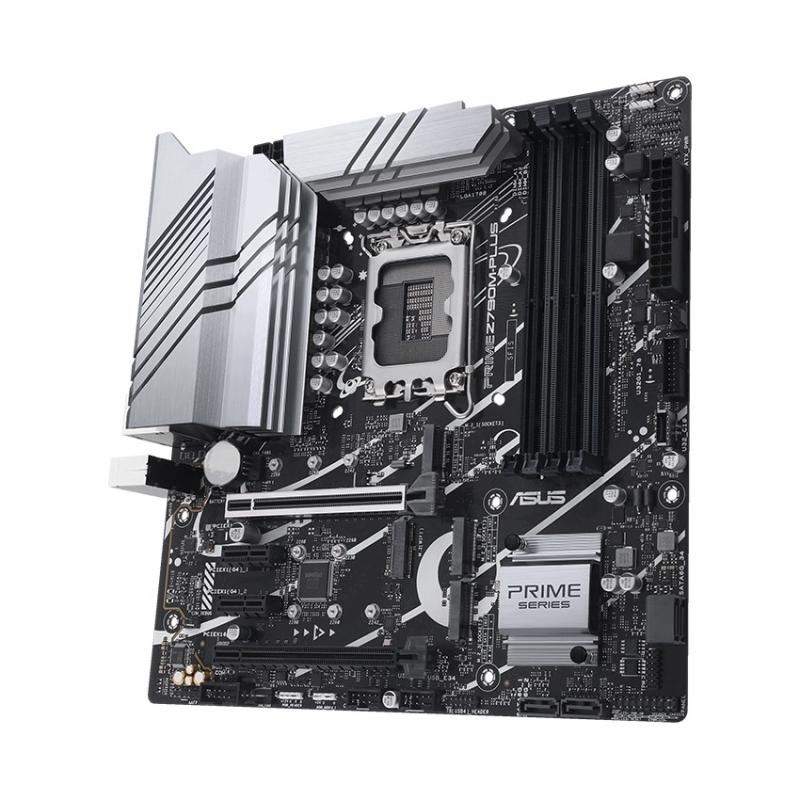

Mainboard ASUS PRIME Z790M-PLUS-CSM (Intel Z790, Socket LGA1700, 4 khe RAM DDR5, mATX)

Asus

36 tháng

Intel LGA 1700

Z790

4 khe

Up to 7200+(OC)

M-ATX

1 x Intel 1Gb Ethernet
ASUS LANGuard

M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

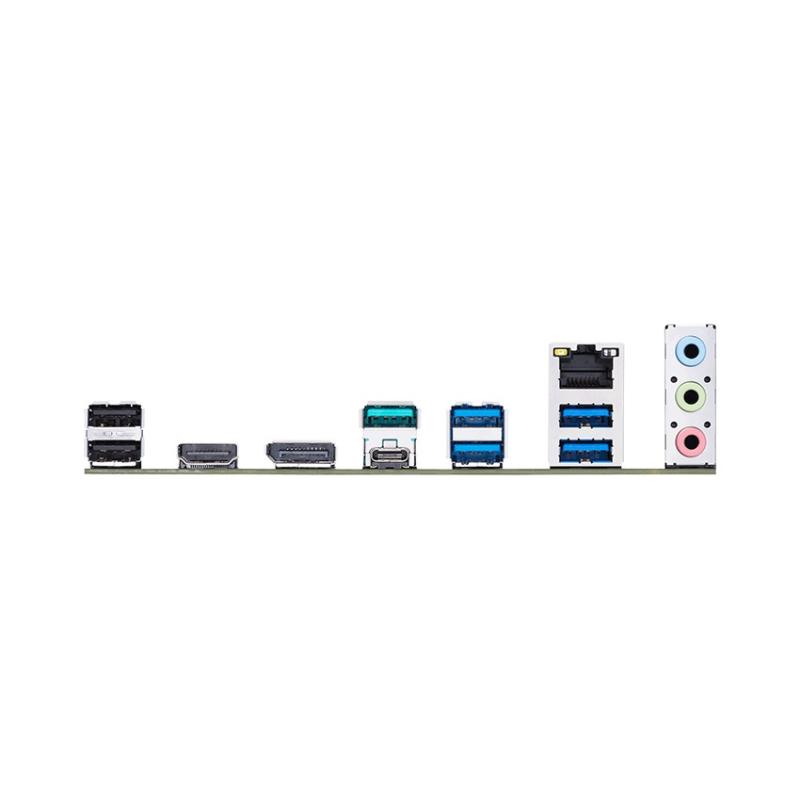

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks

– Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
– Power related
1 x 24-pin Main Power connector
1 x 8-pin + 12V Power connector
1 x 4-pin + 12V Power connector
– Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
– USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
– Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
