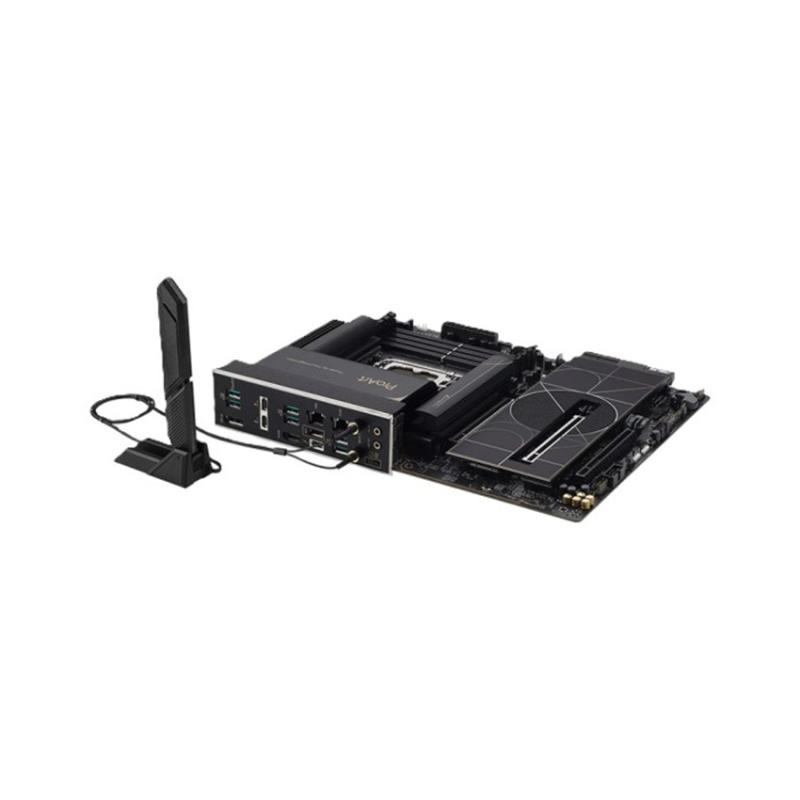

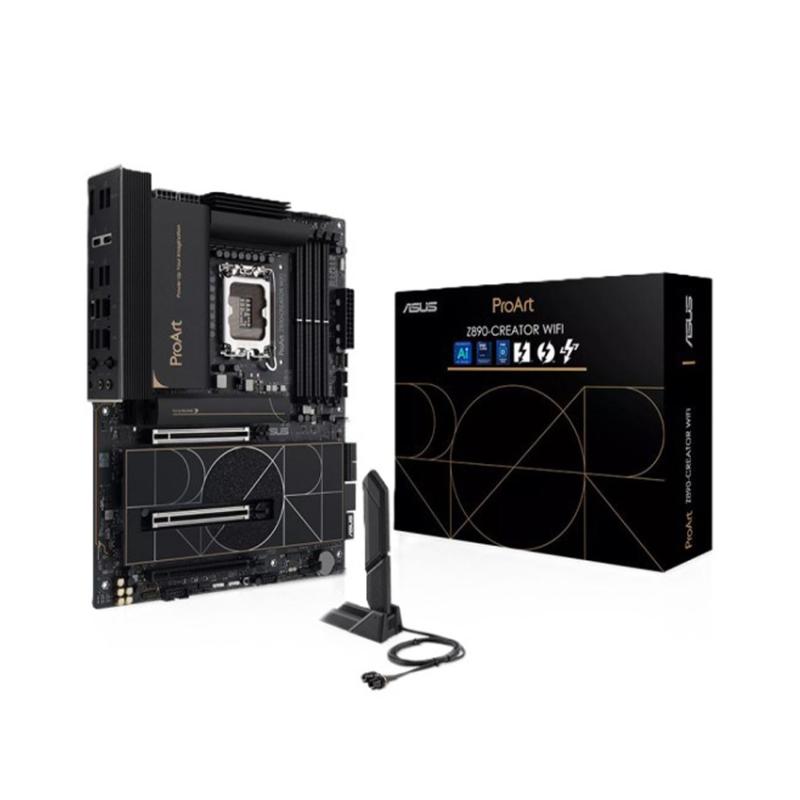

Mainboard ASUS ProArt Z890-CREATOR WIFI (Chipset Intel® Z890, Socket LGA 1851, DDR5 192GB, ATX)

Asus

Đang cập nhật

Intel® Z890

LGA 1851

Hỗ trợ Bộ xử lý Intel ® Core™ Ultra (Dòng 2), LGA1851
Hỗ trợ Công nghệ Intel ® Turbo Boost 2.0 và Công nghệ Intel ® Turbo Boost Max 3.0**

4 khe

192GB

8600+MT/s

ATX

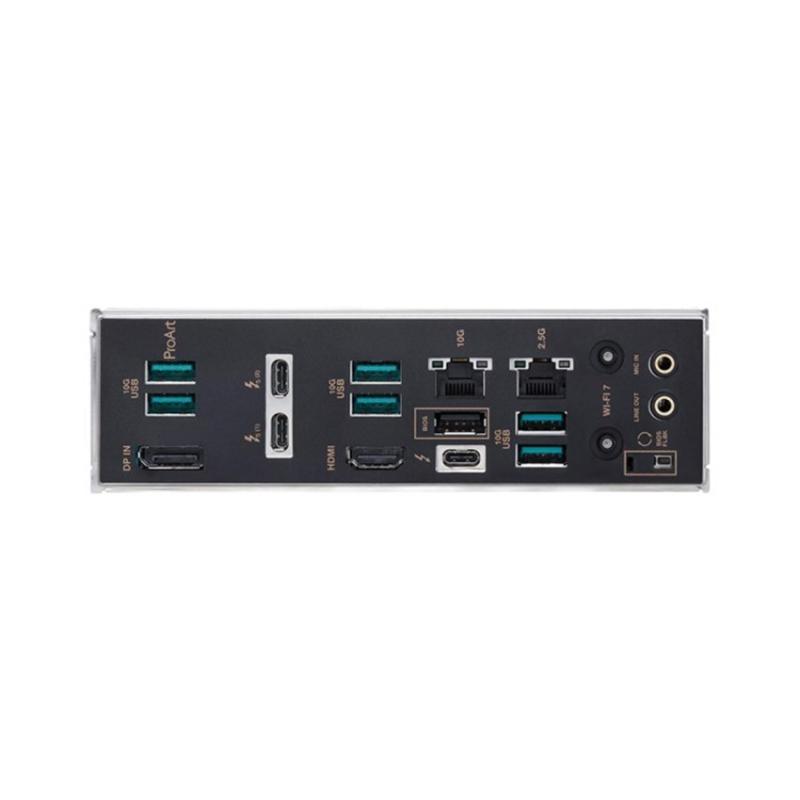

1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet

2 x Thunderbolt™ 5 USB Type-C® ports
1 x Thunderbolt™ 4 USB Type-C® port
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI™ port
1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x BIOS FlashBack™ button

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headersPower Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s portsUSB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over voltage jumper
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x RTC Battery header
1 x Thermal Sensor header

Intel® Core™ Ultra Processors (Series 2) *
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
Intel® Z890 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
4 x SATA 6Gb/s ports

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*Audio Features – Gold-plated audio jacks- Premium audio capacitors- Dedicated audio PCB layers* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

256 Mb Flash ROM, UEFI AMI BIOS

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Đen
