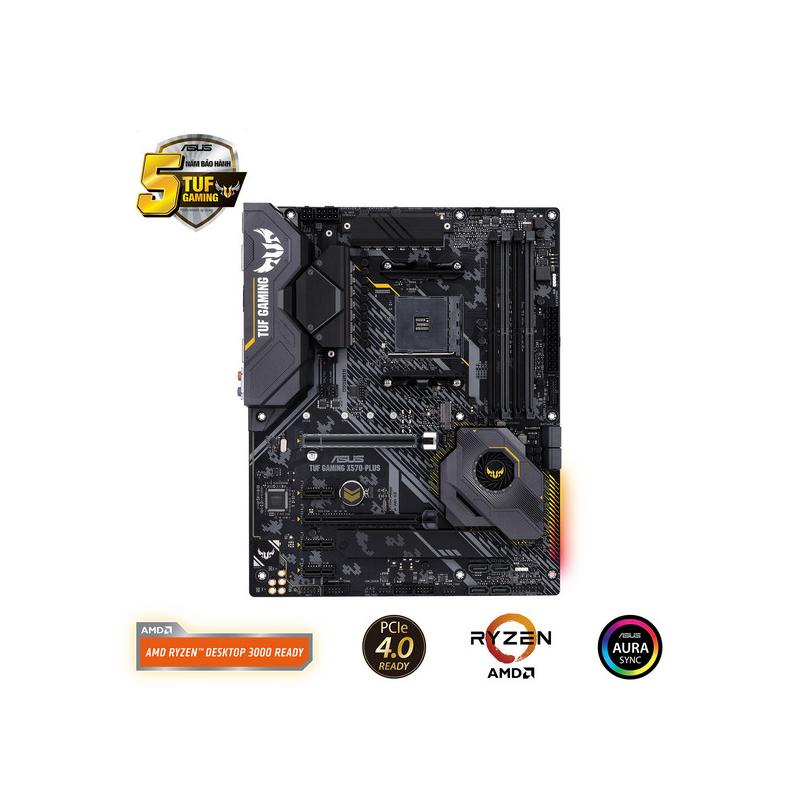

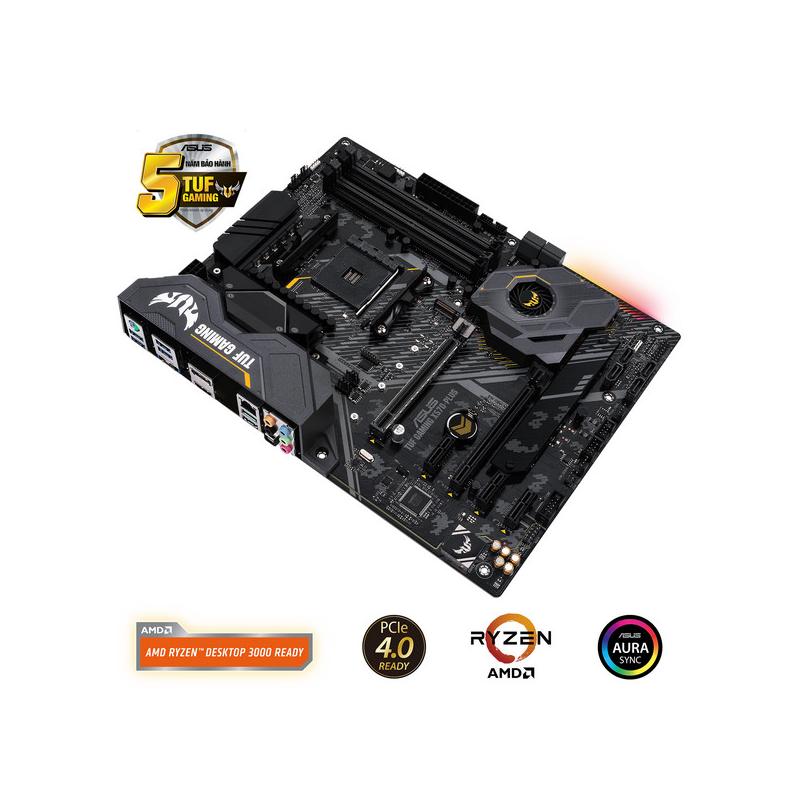

Mainboard ASUS TUF GAMING X570-PLUS AM4

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Modela

TUF X570 GAMING-PLUS

CPU hỗ trợ

AMD

Chipset

X570

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB

Khe cắm mở rộng

3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)

Ổ cứng hỗ trợ

8 x SATA 6Gb/s ports, 1 x M.2 slot

Cổng kết nối (Internal)

2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C^TM)

LAN / Wireless

Realtek® L8200A

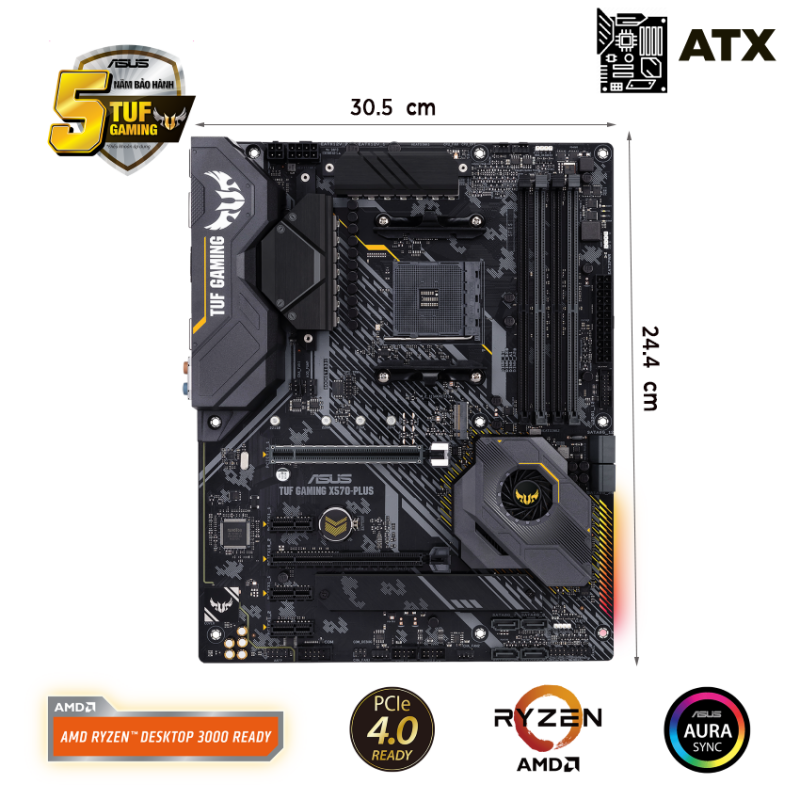

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
