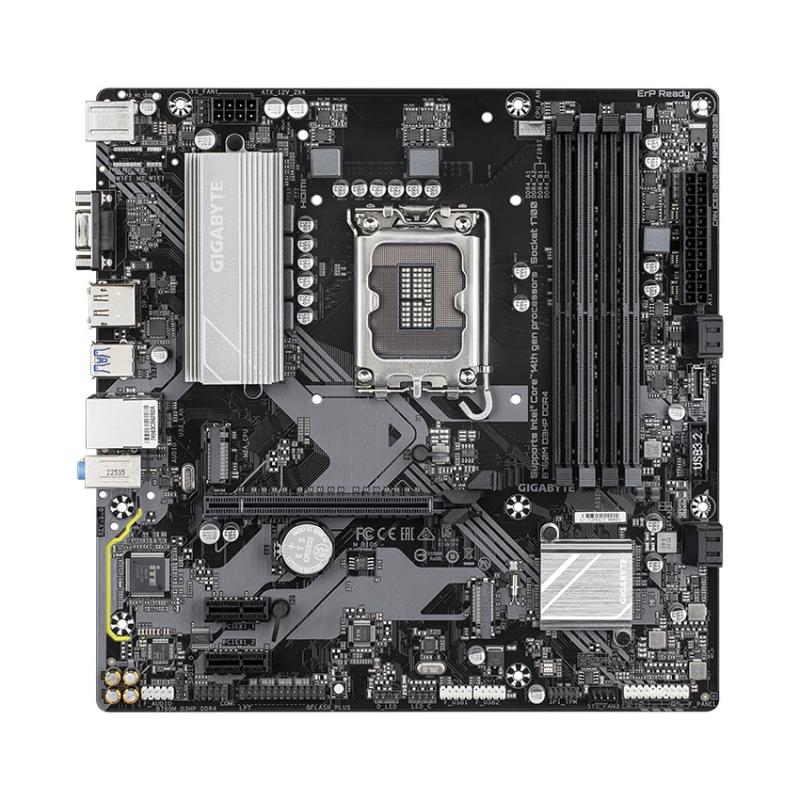

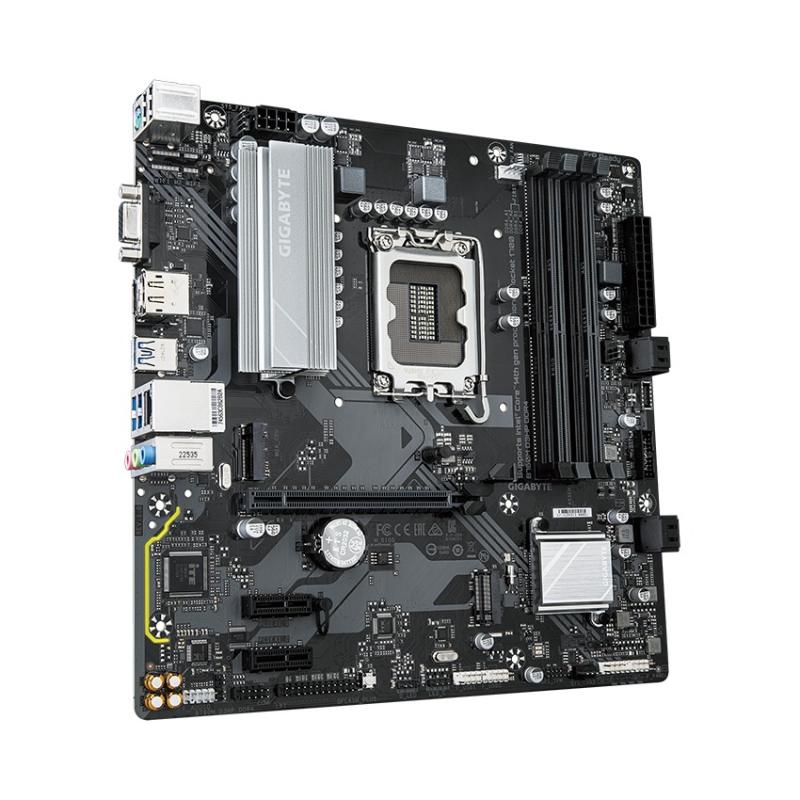

Mainboard Gigabyte B760M D3HP DDR4 (Intel B760, LGA1700, 4 x DDR4 128GB, mATX)

Gigabyte

36 tháng

B760

Intel LGA 1700

4 khe

128GB

2133MHz, 2400MHz, 2666MHz, 2800MHz, 2933MHz, 3000MHz, 3200MHz, 3333(OC), 3400(OC), 3466(OC), 3733(OC), 4000(OC), 4266(OC), 4400(OC), 4600(OC), 4800(OC), 5000(OC), 5133(OC), 5333(OC)

None

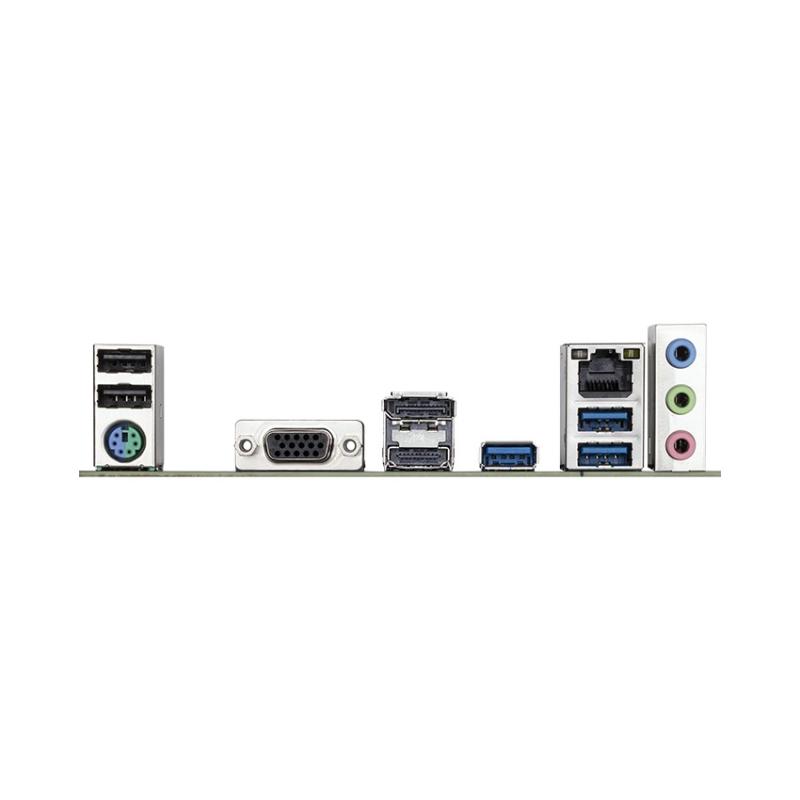

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

M-ATX
