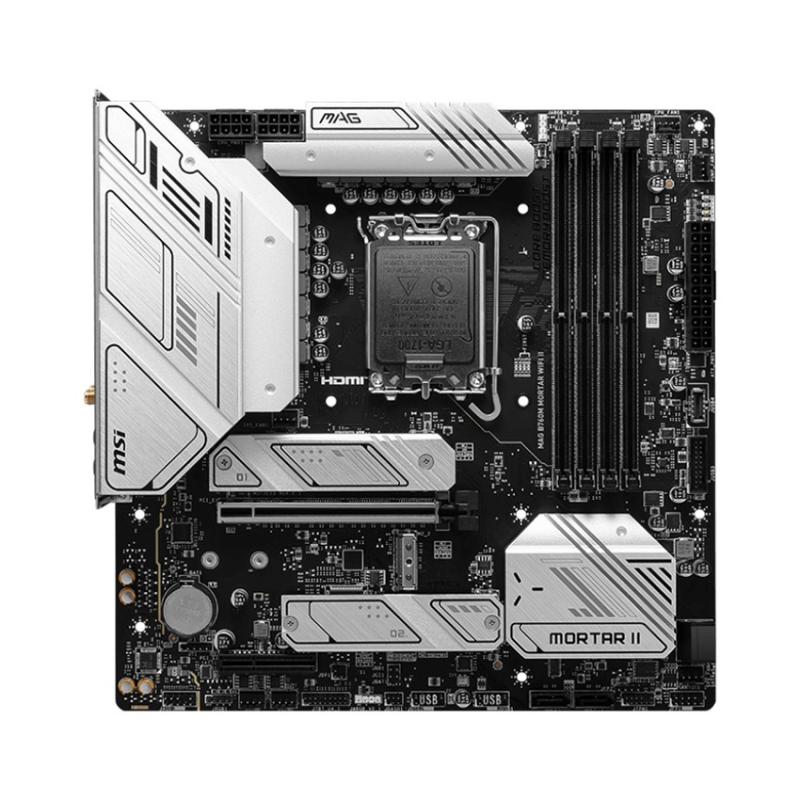

Mainboard MSI MAG B760M MORTAR WIFI II (Chipset Intel B760, Socket LGA1700, DDR5 128GB, mATX)

MSI

36 tháng

Intel LGA 1700

Intel B760

up to 5600(JEDEC), Up to 7800+(OC)

4 khe

1x PCI-E x16
1x PCI-E x4

256GB

Wi-Fi 6E
Bluetooth 5.3

3 x M.2
4 x SATA 6Gb/s

M-ATX

1x HDMI 2.1
1x DisplayPort 1.4

Realtek 2.5Gbps

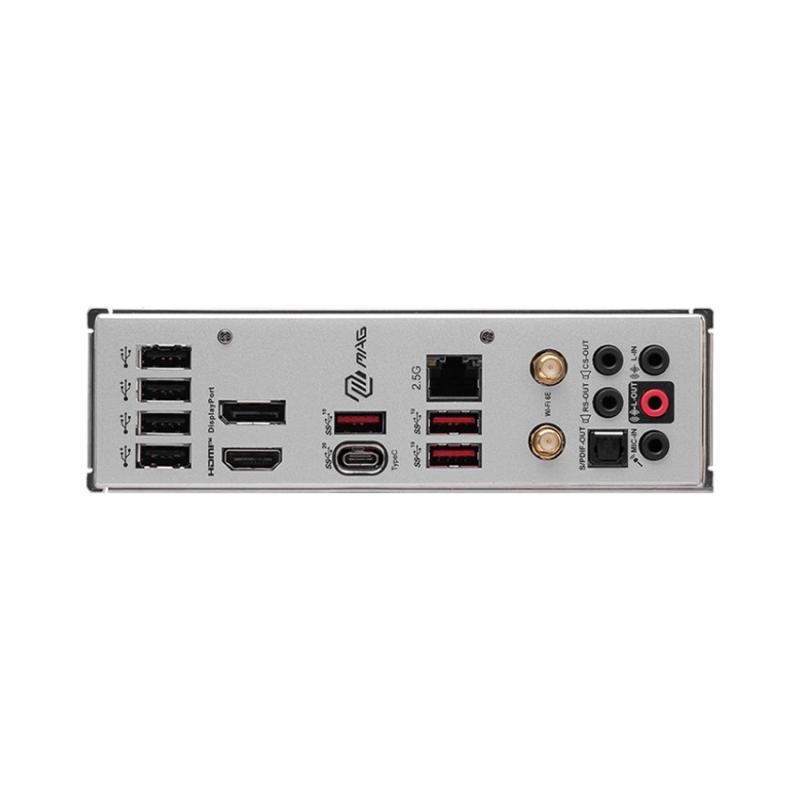

Phía sau:
4x USB 2.0
3x USB 10Gbps Type A
1x USB 20Gbps Type C
Phía trước:
4x USB 2.0
2x USB 5Gbps Type A
1x USB 10Gbps Type C

DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth
HD Audio Connectors
USB 2.0
HDMI™ 2.1 Port
USB 3.2 Gen 2×2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
