THÔNG SỐ KỸ THUẬT
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | MSI |

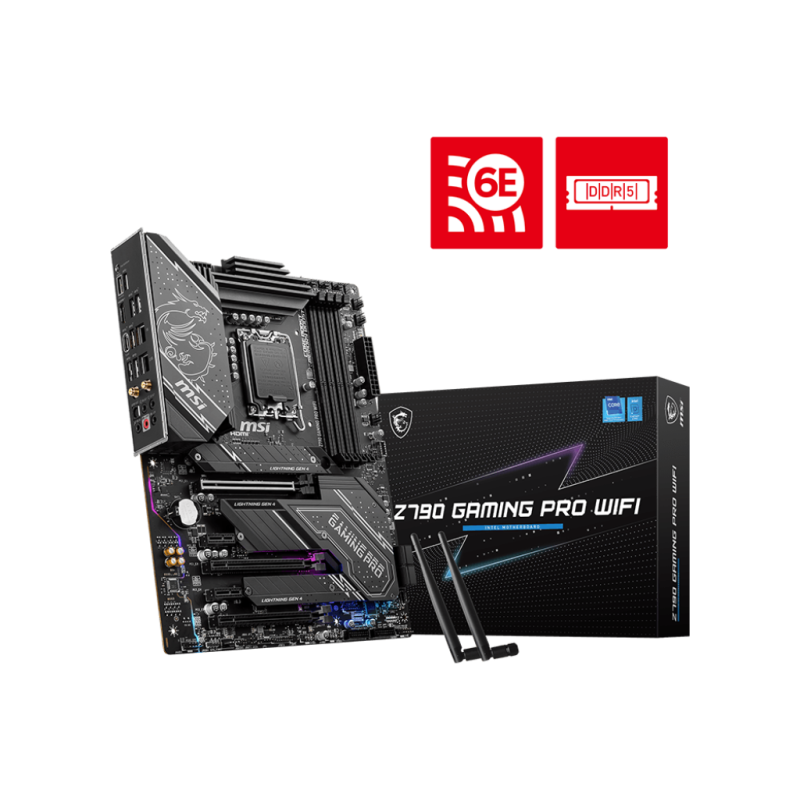

| Model | Z790 GAMING PRO WIFI DDR5 |
| CPU hỗ trợ | Intel |
| Chipset | INTEL Z790 |
| RAM hỗ trợ | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 7200+ MHz | |
| • 1DPC 2R Max speed up to 6400+ MHz | |
| • 2DPC 1R Max speed up to 6000+ MHz | |
| • 2DPC 2R Max speed up to 5600+ MHz | |
| Khe cắm mở rộng | 3x PCI-E x16 slot (Qty) |
| 2x PCI-E x1 slot (Qty) | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| Ổ cứng hỗ trợ | 3x M.2 (Qty) |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G (Qty) | |
| Cổng kết nối (Internal) | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 5x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x TBT connector (JTBT, supports RTD3) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 4x USB 3.2 Gen1 Type A ports | |
| 1x USB 3.2 Gen2 Type C ports | |

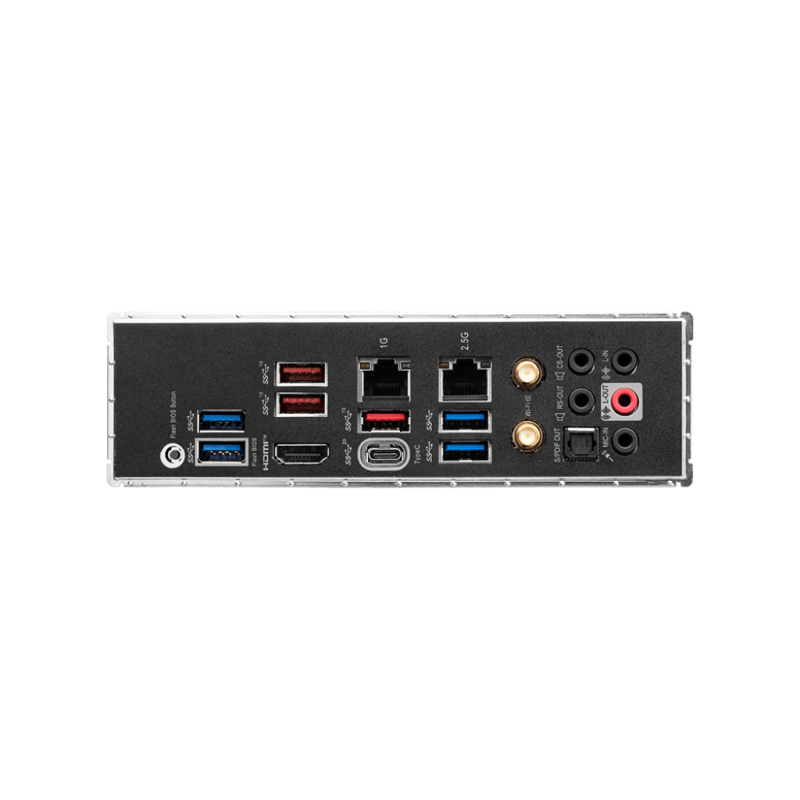

| BACK PANEL | 1. USB 3.2 Gen 1 5Gbps Type-A |
| 2. USB 3.2 Gen 2 10Gbps Type-A | |
| 3. 1G LAN | |
| 4. 2.5G LAN Port | |
| 5. Wi-Fi / Bluetooth Antenna | |
| 6. HD Audio Connectors | |
| 7. Flash BIOS Button | |
| 8. HDMI™ 1.4 Port | |
| 9. USB 3.2 Gen 2x2 20Gbps Type-C | |
| 10. USB 3.2 Gen 1 5Gbps Type-A | |
| 11. Optical S/PDIF OUT | |
| LAN / Wireless | Realtek® RTL8125BG 2.5Gbps LAN |
| Realtek® RTL8111H 1Gbps LAN | |
| Intel® Wi-Fi 6E | |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Kích cỡ | ATX |
| 243.84mmx304.8mm |
